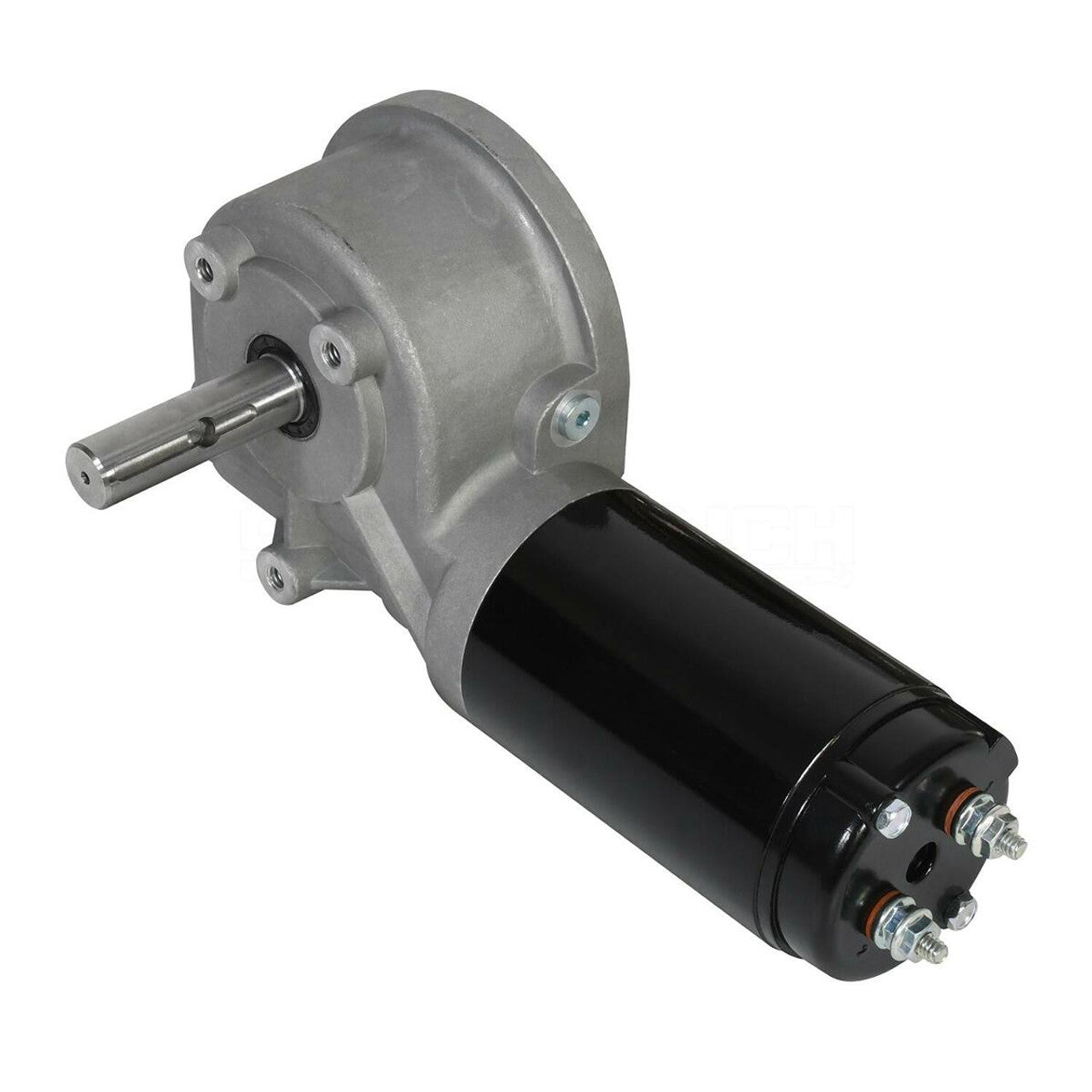

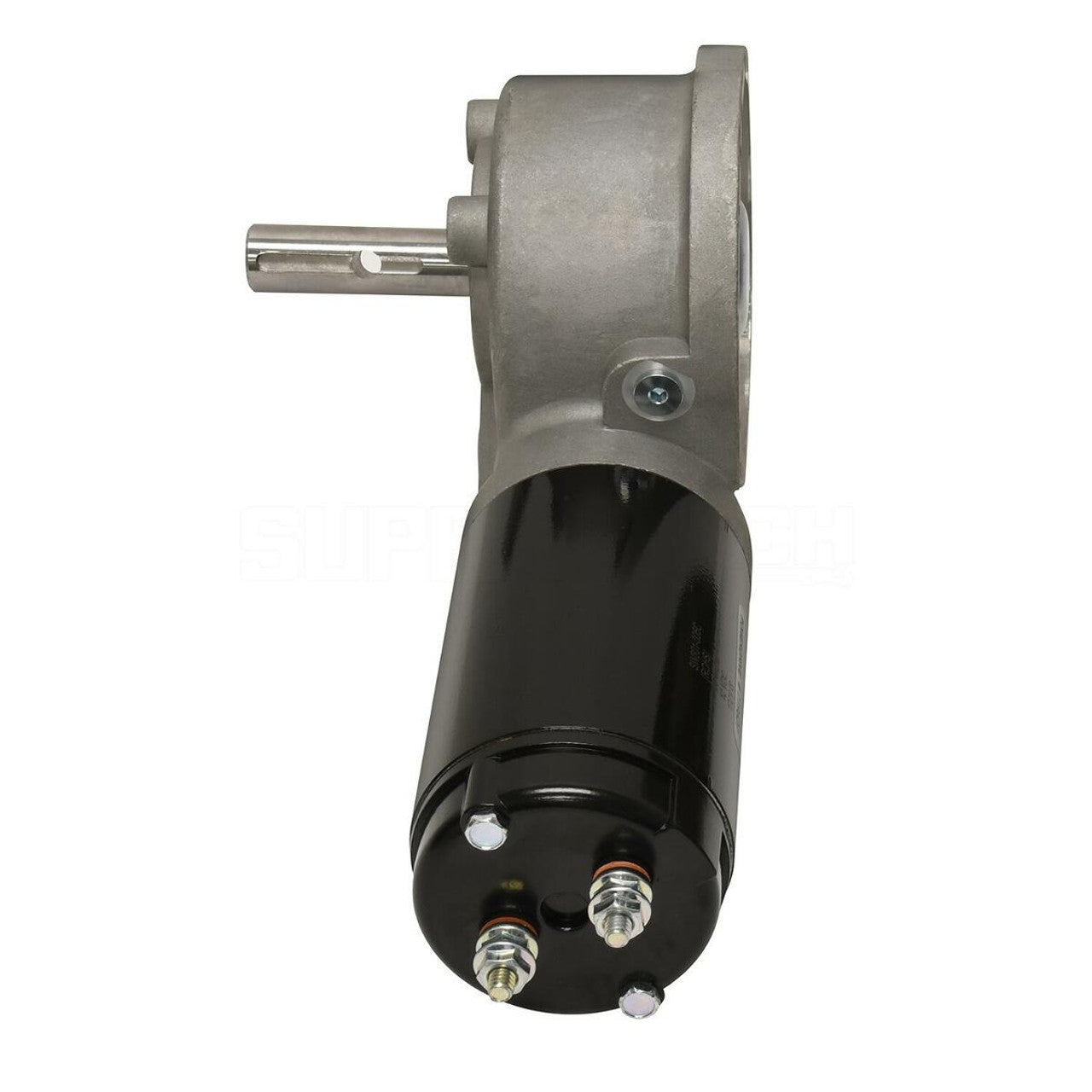

Superwinch Electric Tarp Motor (12V / 24V) – Motor Only, Gearbox Only, or Complete Unit

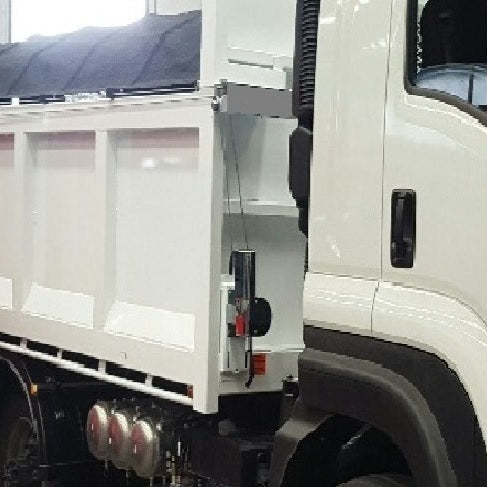

The Superwinch Electric Tarp Motor is the trusted powerhouse for front-to-back tarp systems across Australia. Known for its durability and reliability, this motor is ideal for tipper trucks, trailers, and other heavy-duty transport applications requiring automated tarp operation.

This is a genuine Superwinch 719627 unit — not a replica or copy. Built with a right-angle worm-drive gearbox, this motor is designed for long service life, high torque, and dependable tarp coverage in tough conditions.

AVAILABLE OPTIONS: Choose the setup that best suits your needs:

• 12V - Motor Only
• 12V - Gearbox Only
• 12V - Complete Unit (Motor + Gearbox)
• 24V - Motor Only
• 24V - Gearbox Only
• 24V - Complete Unit (Motor + Gearbox)

Simply select your voltage and configuration from the dropdown menu.

KEY FEATURES:

• Genuine Superwinch 719627 model

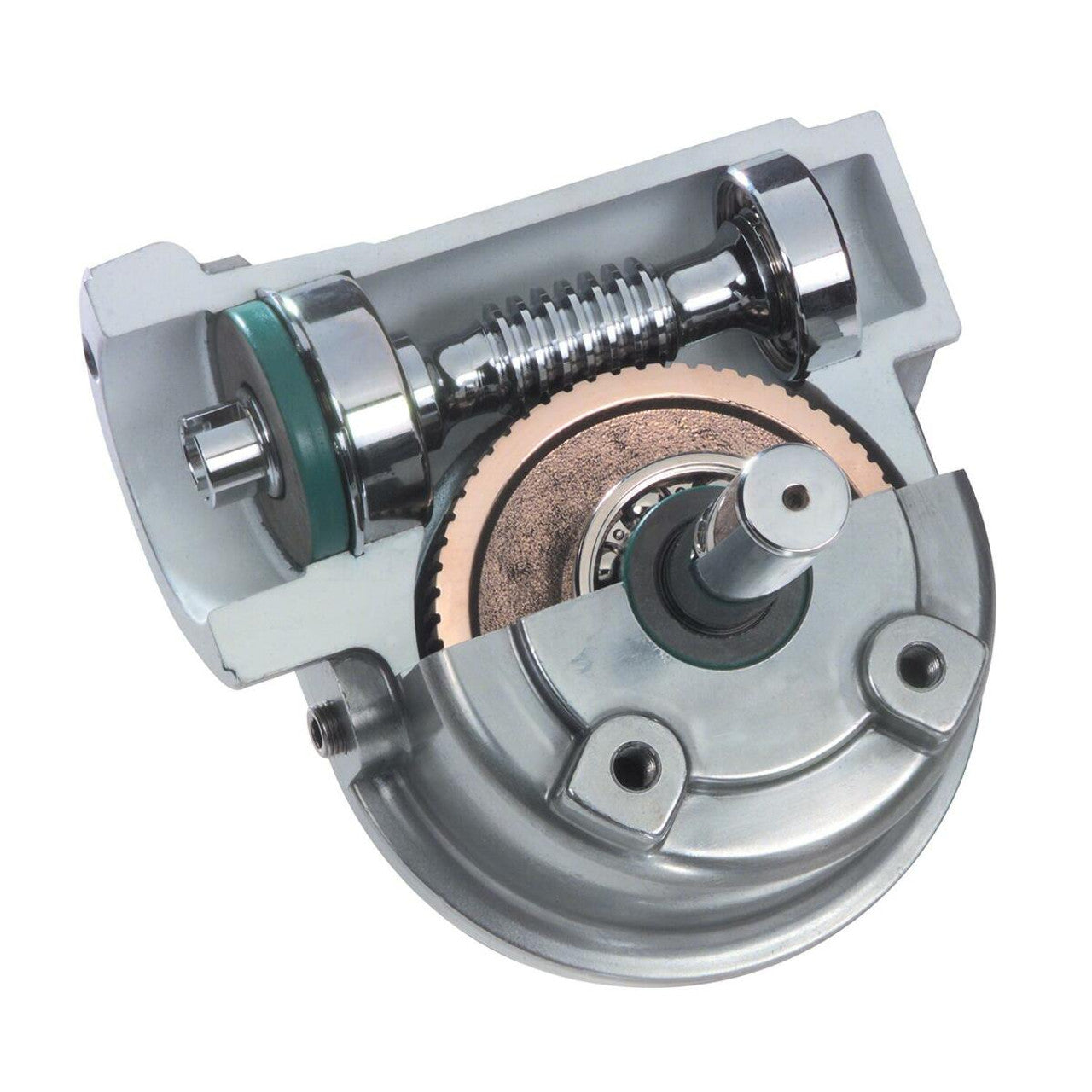

• Right-angle worm drive gearbox
• High-torque 1.8 HP motor
• Approx. 38–45 RPM under load
• Durable chrome cover
• Heavy-duty design for front-to-back tarp systems
• Suitable for manual and electric retrofit setups
• Universal mounting compatibility

TECHNICAL SPECS (from manufacturer PDF):

• Voltage: 12V or 24V DC
• Motor Power: 1.8 HP (1.34 kW)
• Speed: Approx. 38 RPM @ 12V (under load)
• Gearbox: Right-angle worm drive
• Shaft Size: 3/4" x 3/16" keyway
• Part Number: Superwinch 719627

COMMONLY USED BY: Superwinch tarp motors are widely used in the Australian transport industry and trusted by a range of tarp system installers and service providers across the country. While we do not represent or speak on behalf of these companies, this unit is commonly found in systems supplied or installed by brands such as Power Tarps, Air Tarps, Retractable Tarps, George's Canvas, and other independent installers.

NOTES:

• This product is a genuine Superwinch unit — beware of lower-quality aftermarket copies.
• Mounting brackets and wiring kits are not included but can be supplied separately.
• If unsure whether 12V or 24V is right for your truck, feel free to contact us before ordering.
