Razor DII Landing Leg Drive Unit – Drive Unit Only

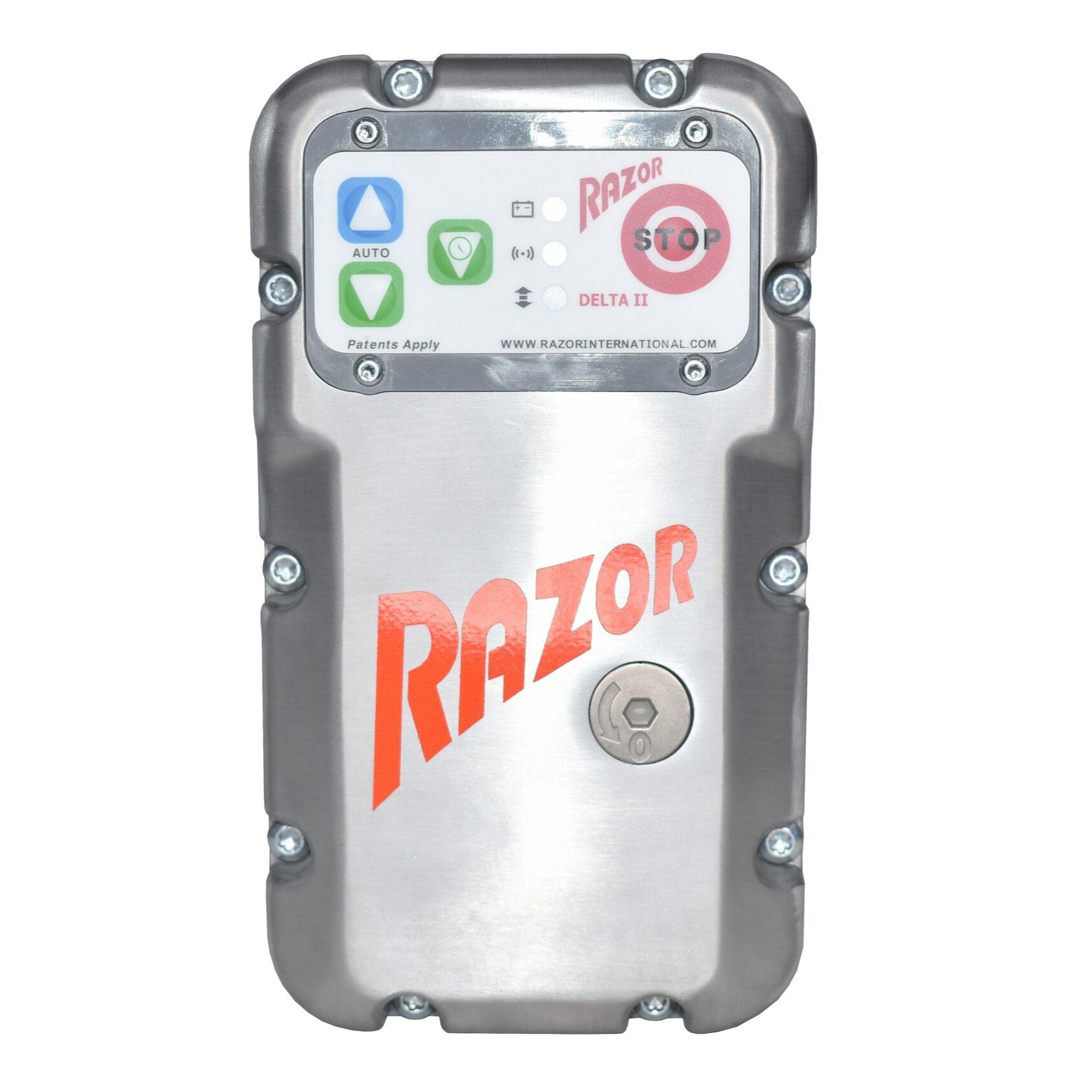

DII-L Landing Leg Drive Unit — OEM Razor motor, gearbox, and controller assembly that powers the electric landing leg system. Smoothly raises and lowers landing legs with the push of a button.

Overview

• Part Number: DII-L
• Includes motor, gearbox, and controller in one compact unit
• Powers Razor’s DII Landing Leg System with efficient, automated operation

Key Benefits

• Eliminates manual winding—quicker and safer coupling/un-coupling
• Reduces driver fatigue and injury risk
• Robust design tailored for harsh conditions

Specs & Functionality

• Lifts up to 25 tonnes when paired with standard landing legs (e.g., Jost, Holland, Binkley, York)
• Compact and lightweight—engineered for easy installation (exact dimensions: 178 mm × 134 mm × 237 mm / 5.5 kg (motor only), ~13 kg with Power Kit) :contentReference[oaicite:1]{index=1}
• Wide voltage range (10.5–30 V DC) with IP65 weather rating for dusty, wet, or corrosive environments :contentReference[oaicite:2]{index=2}

Compatibility & Notes

• Replaces the motor/gearbox/controller module in Razor DII Landing Leg Systems
• Functions with all major leg brands; torque arm must be ordered separately—see your trailer brand for the correct part :contentReference[oaicite:3]{index=3}

Need help with fit or torque arm selection? Send your system details or trailer brand, and we'll guide you to the right kit.
