Razor DII Electric Landing Leg System – Complete Kit
Razor DII Electric Landing Leg System – Complete Kit
Regular price
$2,200.00
Regular price
Sale price
$2,200.00
Unit price
/
per
Shipping calculated at checkout.
Contact us
Contact us
Call us: 0408 357 114
Email: contact@alltarp.store
We’re always happy to help with parts, quotes, or product questions — reach out anytime and we’ll get back to you quickly.
Couldn't load pickup availability

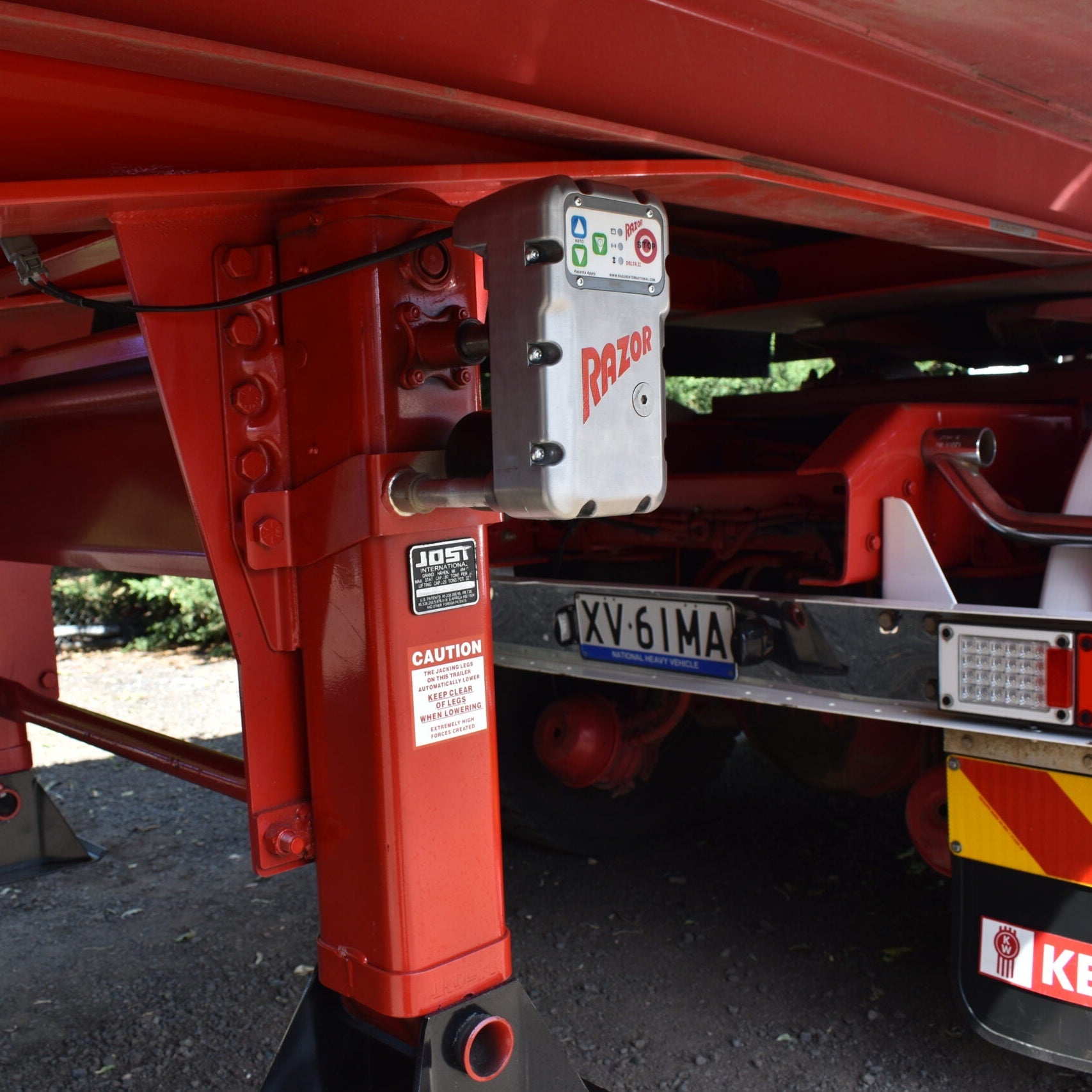

Take the grind out of uncoupling. The Razor DII Complete Kit motorises your trailer landing legs at the press of a button, lifting up to 25 t in under two minutes. Built for Australian conditions (IP65‑rated, –30 °C to 60 °C), this kit includes everything except the torque arm so you can upgrade almost any Jost or Holland legs in one hit.
What's in the box

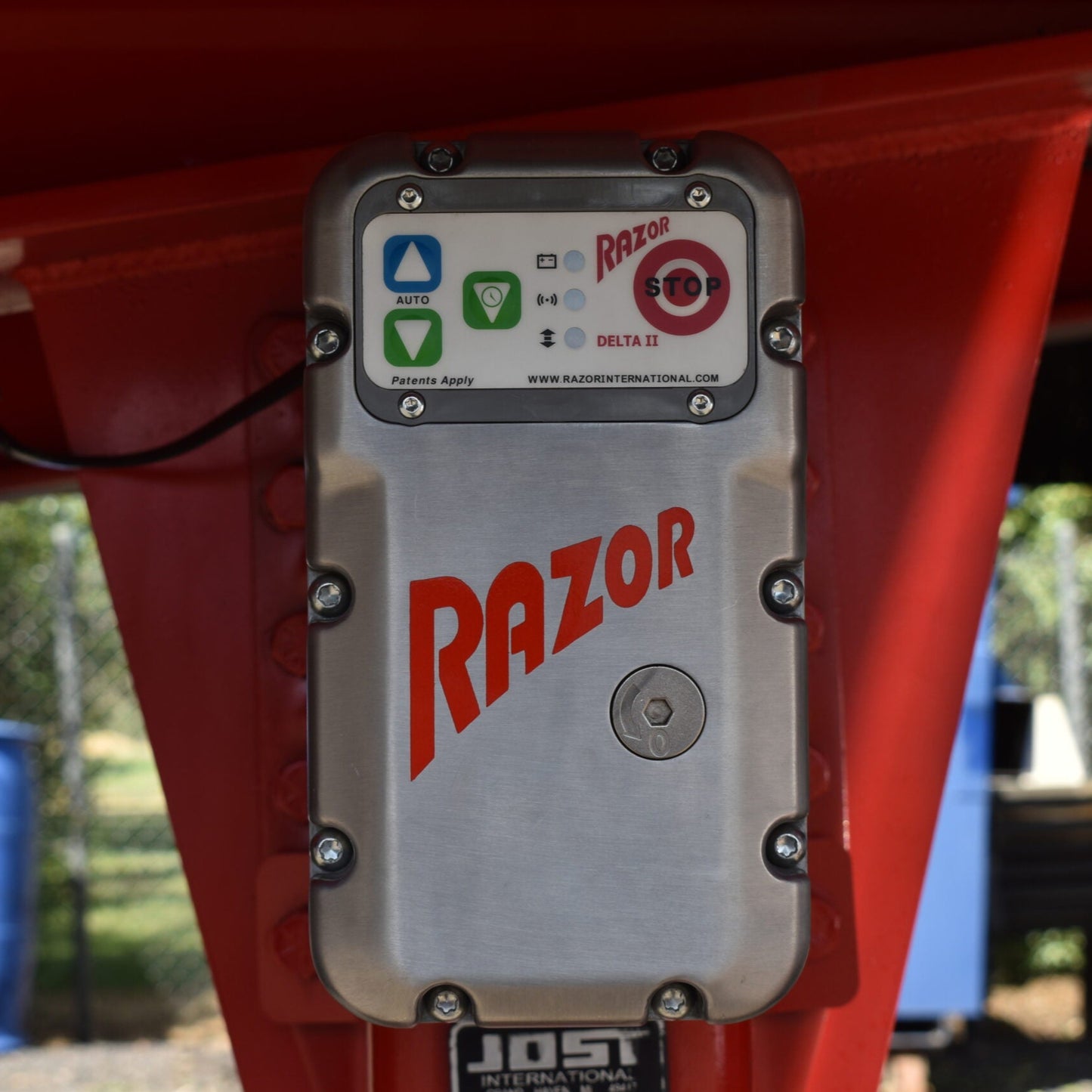

- Razor DII Drive Unit (motor + gearbox + controller)
- 4‑button horizontal remote with bezel
- Battery Power Kit P‑1000R (12 V multivolt charge)
- Charge / wiring harness & mounting hardware
- Front‑cap O‑ring, front cap, rear collar & drive‑pin set
- Torque arm ordered separately to match your leg brand
Key specs
| Capacity | 25 t lift |
|---|---|
| Torque | 120 Nm |
| Voltage | 12 V DC (10.5–30 V charge) |
| Deploy/Retract time | Approx. 1–2 min |
| Weather rating | IP65 |
| Weight | 13 kg (with battery kit) |
| Dimensions | 178 × 134 × 237 mm |
Why choose Razor DII
- Eliminates manual winding – reduces driver fatigue
- Sealed electrics handle dust, water & mud
- Multivolt battery charges from truck supply – no extra wiring runs
- Operate via remote or optional Razor Connect app
Need just the motor? Check out our Razor DII Drive Unit – Motor‑Only.
